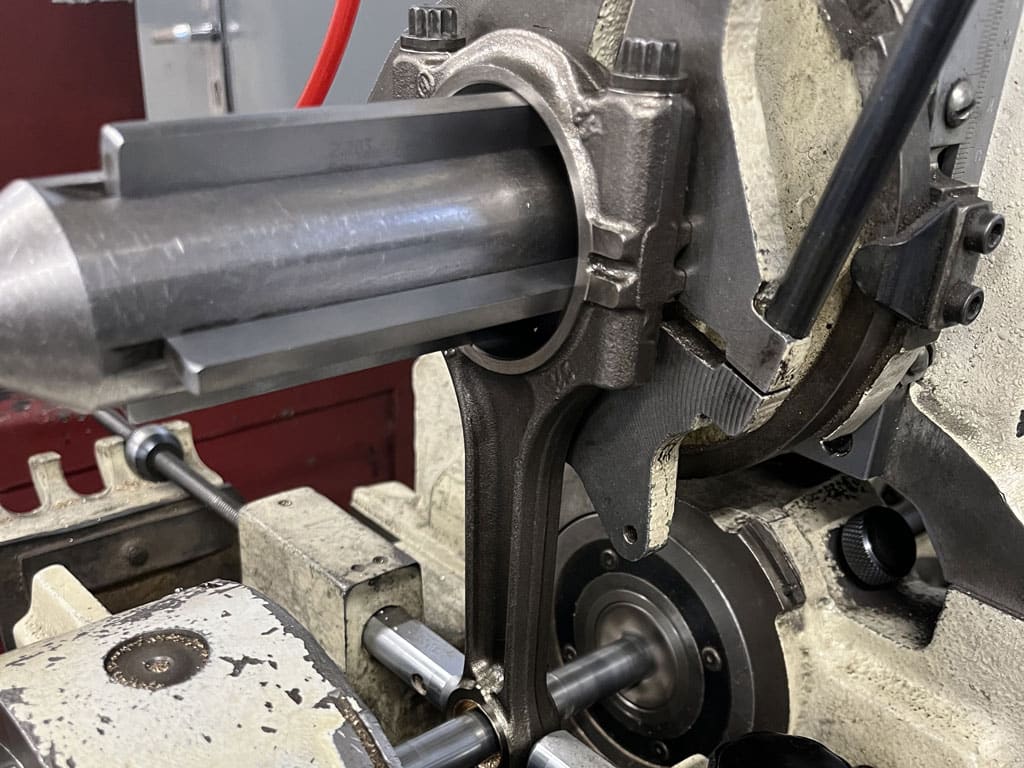

### **Connecting Rod Boring and Grinding** **Connecting rod boring and grinding** are essential machining processes to restore the **big end and small end** of the rod, ensuring proper alignment and fitment with the crankshaft and piston pin. These steps help maintain optimal engine performance and longevity. --- ## **1. Connecting Rod Boring** Boring is done when the **big end bore (crankshaft journal end) or small end bore (wrist pin end)** becomes worn, out-of-round, or misaligned due to wear, overheating, or improper assembly. ### **Steps for Connecting Rod Boring:** 🔧 **Inspection & Measurement:** - Use a **dial bore gauge or micrometer** to check bore diameter and roundness. - If excessive wear is found, determine the required **oversize or insert replacement**. 🔧 **Machining Process:** - Secure the connecting rod in a **rod boring machine**. - Align the boring tool precisely with the existing bore centerline. - Bore the **big end** and **small end** to the correct diameter in multiple passes. 🔧 **Final Check:** - Measure the bore to ensure it matches the manufacturer’s specifications. - If needed, install **new bushings** in the small end and ream them to size. --- ## **2. Connecting Rod Grinding** Grinding is performed to **restore the parting surface** of the rod and cap for a perfect mating surface. This ensures correct bearing crush and clearance. ### **Steps for Connecting Rod Grinding:** 🛠 **Surface Grinding (Rod and Cap):** - Secure the **rod and cap** in a precision grinding machine. - Lightly grind the mating surfaces to achieve a **flat and true surface**. - Maintain **proper material removal** to avoid excess reduction in size. 🛠 **Final Resizing (After Grinding):** - After grinding, the big end bore becomes smaller. - The rod is then **re-bored or honed** back to the correct size. - Verify dimensions to ensure proper bearing fit. --- ### **Why Connecting Rod Boring and Grinding Matter?** ✅ Ensures **proper bearing clearance**, reducing friction and wear. ✅ Restores **correct alignment**, preventing crankshaft stress. ✅ Increases **engine reliability** by preventing bearing failure. Would you like recommendations on tools or troubleshooting misalignment issues? 🔧
