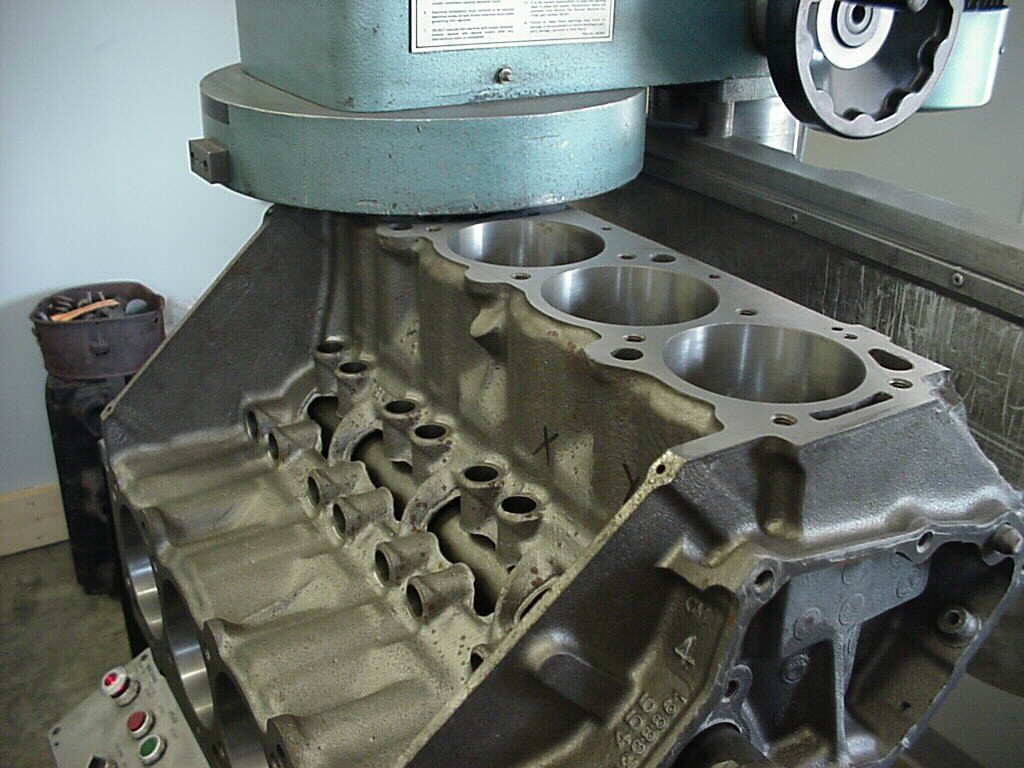

### **Cylinder Head and Block Resurfacing** **Cylinder head and block resurfacing** is the process of machining the mating surfaces of the engine block and cylinder head to ensure **perfect flatness, proper sealing, and optimal compression**. This is crucial for preventing **head gasket failures, coolant leaks, and compression loss**. --- ## **1. When is Resurfacing Needed?** ✔ **Overheating damage (warped head/block)** ✔ **Blown head gasket (gasket imprint or erosion on surface)** ✔ **Corrosion, pitting, or surface irregularities** ✔ **Engine rebuilding or performance upgrades** --- ## **2. Cylinder Head and Block Resurfacing Process** ### **🔧 Step 1: Inspection & Preparation** - **Check for warping or unevenness** using a **straight edge and feeler gauge** (specs vary by engine, typically under **0.002”-0.005”** deviation). - **Look for cracks, deep grooves, or corrosion** (minor damage can be resurfaced; severe damage may require replacement). - **Remove all components** (valves, camshafts, head gasket, and dowel pins). - **Clean the surface** to remove carbon deposits, oil, and debris. --- ### **🛠 Step 2: Machining the Surface** #### **1. Milling (Machine Resurfacing) – Most Precise Method** - Uses a **CNC milling machine or belt sander** to remove a precise amount of material. - Achieves a **smooth, even surface** with minimal material removal. - Ideal for modern engines with **MLS (Multi-Layer Steel) head gaskets** requiring a finer surface finish (**RA 20-30 μin**). #### **2. Grinding (For Cast Iron Heads & Blocks)** - Uses a **rotating stone** to remove material evenly. - Produces a rougher surface, more suitable for **composite or copper head gaskets**. - Not recommended for **aluminum heads with MLS gaskets** due to the need for a finer finish. #### **3. Lapping (Hand Resurfacing for Minor Repairs)** - Uses **lapping compound** and a flat plate to **manually remove small imperfections**. - Not ideal for severely warped heads but useful for **final finishing**. --- ### **⚙ Step 3: Final Checks & Reassembly** - **Measure final surface finish (RA - Roughness Average)** to match gasket type. - **Check thickness** to ensure proper compression ratio and valve clearance. - **Reinstall the head using a new gasket** and torque bolts to manufacturer specs. --- ## **3. Why Cylinder Head & Block Resurfacing is Important?** ✅ Ensures **proper sealing** to prevent coolant and oil leaks. ✅ Restores **flatness**, preventing head gasket failure. ✅ Improves **compression and combustion efficiency**. ✅ Extends **engine life and reliability**. Would you like recommendations on resurfacing tools or troubleshooting warpage issues? 🔧🚗
